Good Condition Second-hand Hitachi ZX 210 -3 for Sale Original Japan Brand in Stock

A comprehensive description of the Hitachi ZX210 series excavators, based on parameters and characteristics from multiple sources:

I. Basic parameters

Power system

Engine: Equipped with ISUZU AA-6BG1T inline six-cylinder turbocharged engine, rated power 110-125 kW (147-169 horsepower), displacement 6.494 L, supports low-temperature start and low fuel consumption design.

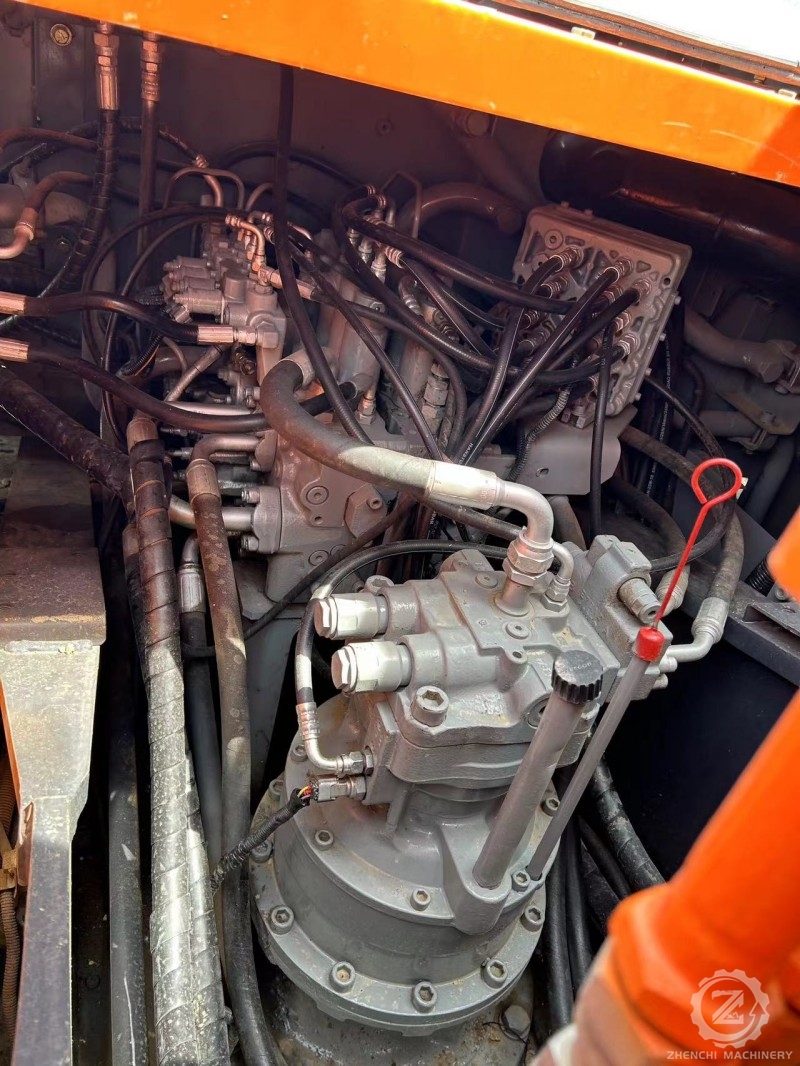

Hydraulic system: Adopts dual-variable axial piston pump, the maximum flow of the main pump is 194×2 L/min, the working pressure is 34.3 MPa, combined with HIOS III hydraulic technology, improves operating efficiency and reduces fuel consumption by 9%.

Weight and size

Operating weight of the whole machine: 20.6-21.5 tons, floating according to different models (such as ZX210H-3G is 20.6 tons, ZX210LC-3G is 21.1 tons).

Body size: total length in transport state 9,500-9,620 mm, width 2,800-2,990 mm, height 2,970-3,010 mm, tail swing radius 2,750 mm, suitable for narrow space operations.

Excavation performance

Bucket capacity: standard configuration 0.91 m³, optional rock bucket or large capacity bucket (0.13-1.2 m³).

Maximum excavation depth: 6,450-6,660 mm, vertical excavation depth up to 6,040 mm, maximum excavation height 10,040 mm, unloading height 7,180 mm.

Excavation force: bucket excavation force 151 kN, bucket arm excavation force 109 kN, traction force 203 kN, suitable for heavy load operations.

2. Performance characteristics

Strengthened structural design

Lower walking body: X-beam structural strength increased by 35%, track chain thickened by 10%, and tension wheel bracket strengthened to adapt to harsh working conditions such as mines.

Front-end device: The boom (5,680 mm) and dipper (2,910 mm) are reinforced, and WC spraying technology is implemented on the end of the dipper to improve wear resistance.

Intelligence and operation experience

Cab: Standard CRES cab, equipped with fully automatic air conditioning, air suspension seat, reduced noise and vibration, and humanized operation interface.

Hydraulic control: Supports automatic power boost function and dipper regeneration system to optimize loading operation efficiency; automatic idling function reduces fuel consumption.

Environmental protection and economy

Fuel efficiency: ECO mode can further reduce fuel consumption by 9%, and the fuel tank capacity is 360 L, which supports long-term continuous operation.

Emission standards: Meets US EPA Tier 2 and EU Level II standards, with outstanding environmental performance.
