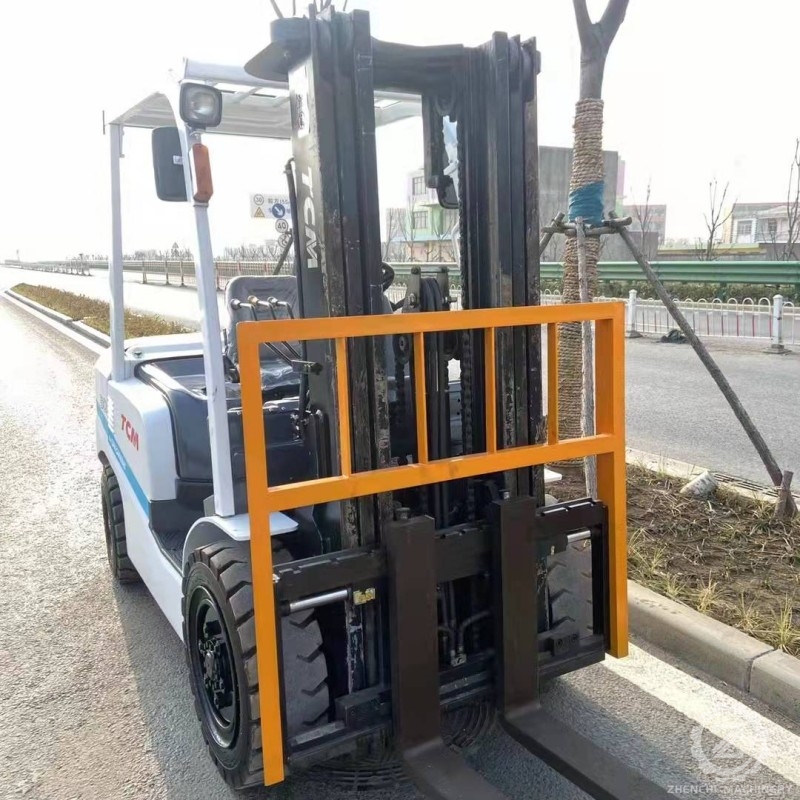

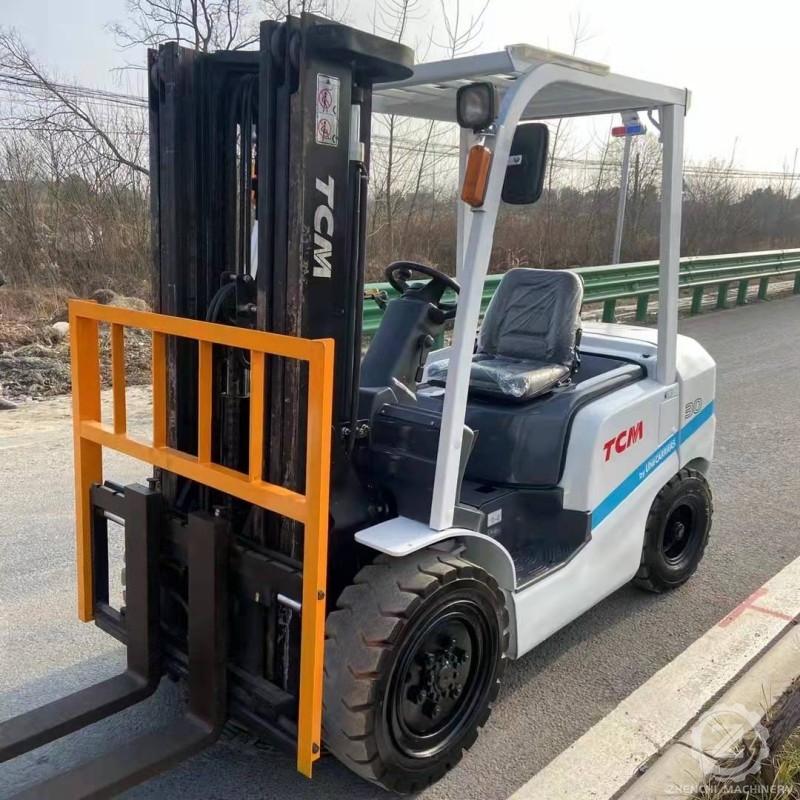

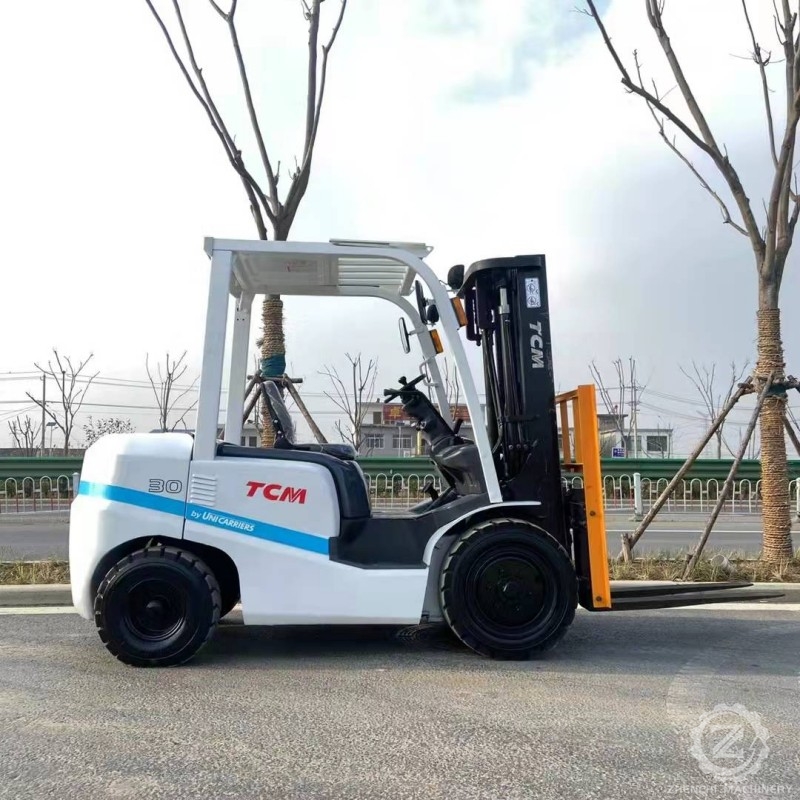

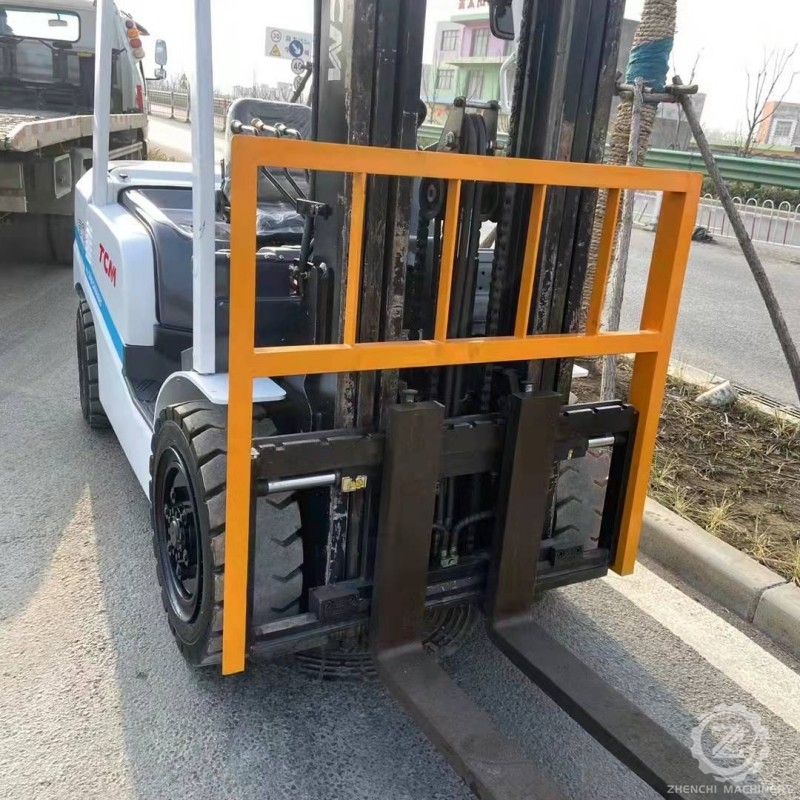

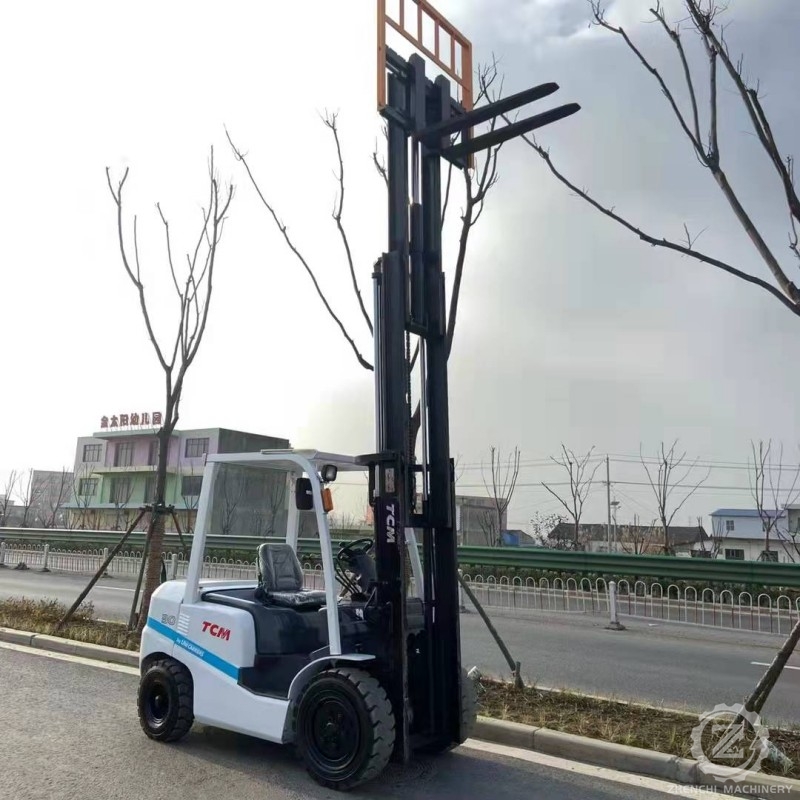

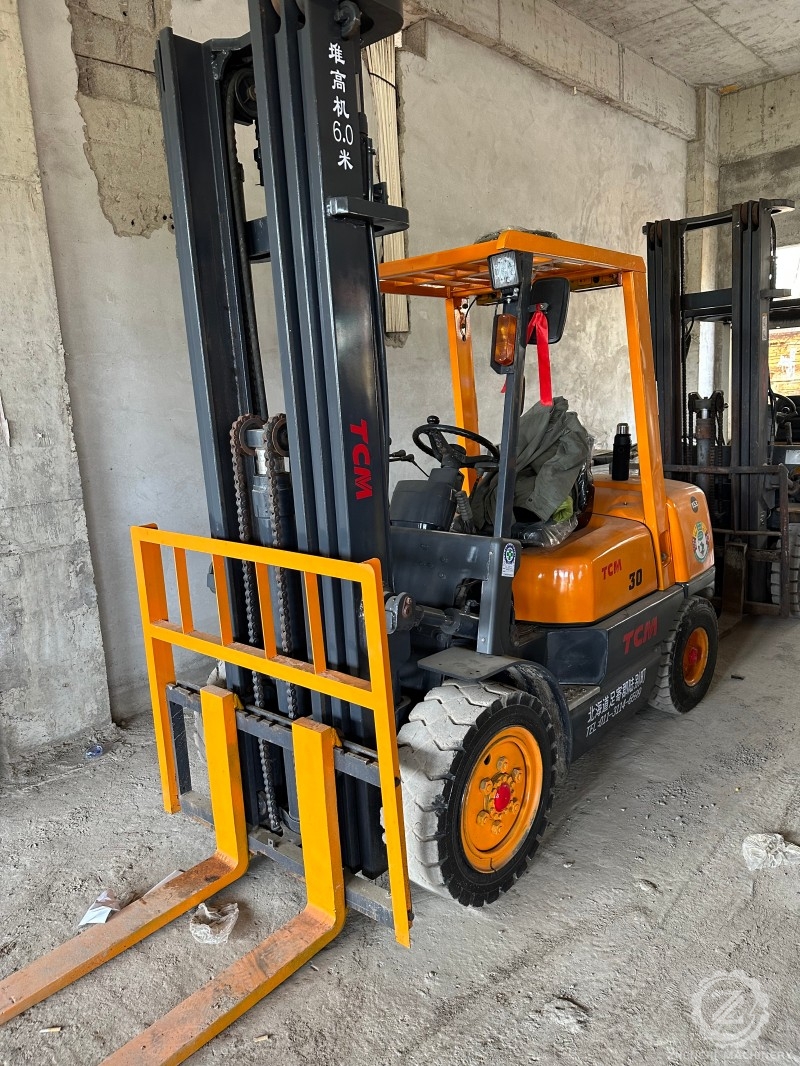

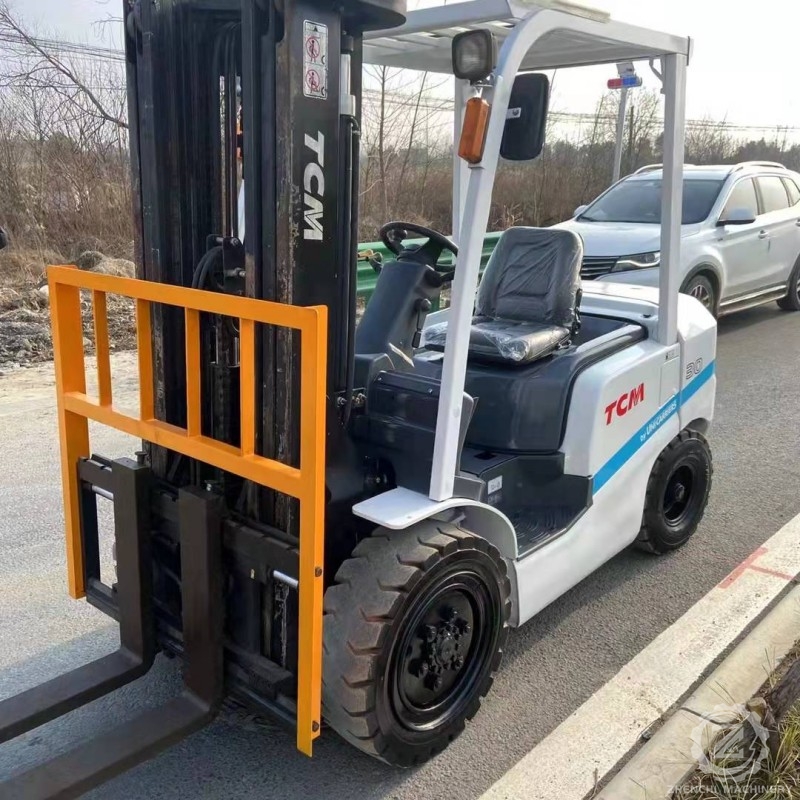

TCM's FD3.0 diesel forklift. The following is a comprehensive description:

1. Core configuration and performance parameters

Power and carrying capacity

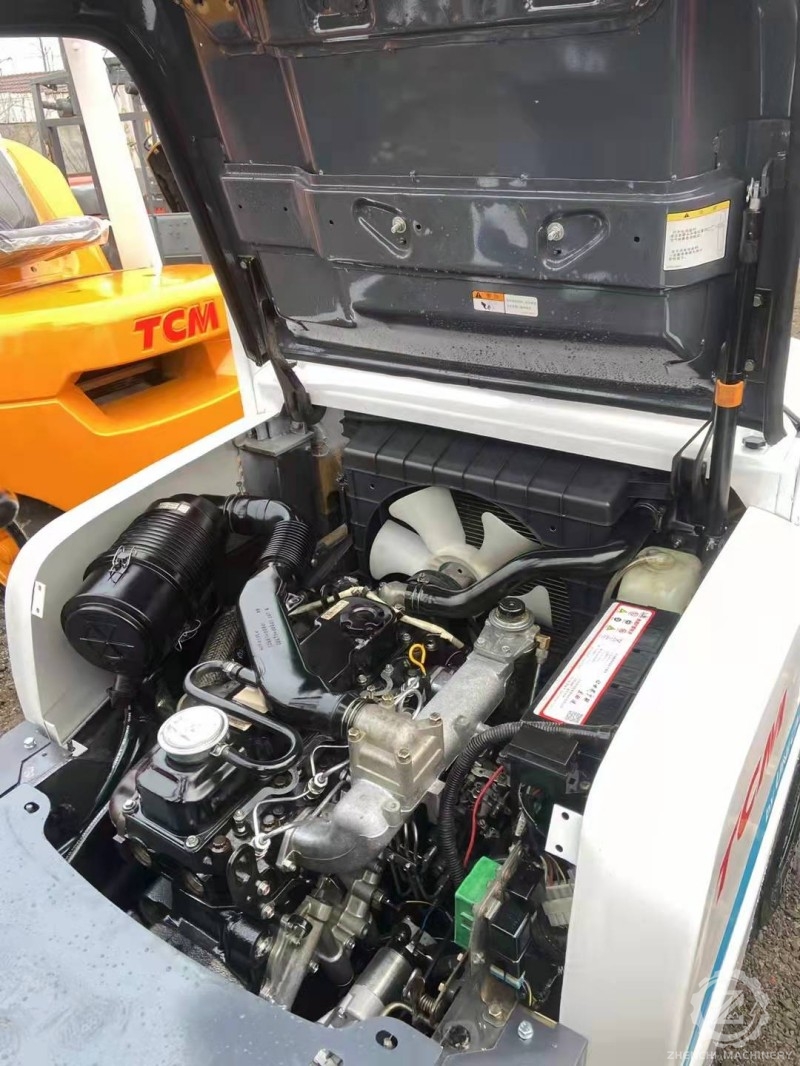

Diesel engines, such as the Dalian CA498-12 model, are used, with a rated power of 42kW (56.3 horsepower) and a maximum torque of 172N·m@1800rpm, which meets the needs of high-intensity operations.

Rated load of 3.0 tons, load center distance of 500mm, suitable for pallet handling and stacking operations in factories, logistics centers and other scenarios.

Transmission and control

Equipped with a hydraulic gearbox, supporting 1st gear forward/reverse, easy operation and efficient power transmission.

Turning radius of 2400mm (outside), full width of 1225mm, suitable for narrow channel operations; overhead guard height of 2090mm to ensure high-level stacking safety.

Speed and efficiency

Full-load driving speed of 18km/h, no-load 19.5km/h; full-load lifting speed of 520mm/s, no-load 570mm/s, taking into account both efficiency and stability.

II. Technical Upgrade and Design Highlights

Ergonomic Optimization

The suspended cab design reduces vibration by 30%-40%, and is equipped with a fully sealed instrument panel and a wide-view mast, which significantly improves operating comfort.

Equipped with a CAN bus LCD instrument, it monitors the engine status in real time and supports intelligent fault diagnosis.

Safety and Reliability

Integrated safety system: including LED signal lights, half-axle sealed drive axles, hydraulic buffer masts, etc., to reduce the risk of oil leakage and improve operational safety.

Optional explosion-proof models: such as the XFD30A-FB model, equipped with explosion-proof electric starters, anti-static tires and explosion-proof lamps, suitable for hazardous locations (Zones 1 and 2).

Energy saving and maintenance convenience

The dual-pump confluence hydraulic system is adopted to reduce energy consumption while improving hydraulic efficiency; the heat dissipation system is optimized to enhance the reliability of key components (such as the gearbox).

The external oil filter and the 80° wide-angle opening design of the hood simplify the daily maintenance process and reduce downtime.

3. Application scenarios and market positioning

Applicable scenarios

Mainly for medium and heavy-duty handling scenarios such as factories, warehouses, and ports, especially suitable for outdoor or well-ventilated indoor environments.

Explosion-proof models can be expanded to hazardous goods storage fields such as chemicals, oil and gas.

Market competitiveness

Advantages: The TCM FD series is known for its high cost-effectiveness and durability, with a nationwide service network and perfect after-sales support; explosion-proof models fill the needs of special working conditions.

Challenges: With the popularization of electric forklifts, internal combustion forklifts face environmental pressure and need to maintain market share through technological upgrades (such as emission optimization).

4. Technical Parameter Comparison (FD30T3CD)

Parameter Value

Rated load 3000 kg

Load center distance 500 mm

Turning radius (outside) 2400 mm

Overhead guard height 2090 mm

Engine power 42 kW @ 2450rpm

Fuel tank capacity 70 L

Weight (including oil and water) 4245 kg

5. Summary

TCM FD3.0 diesel forklifts (such as FD30T3CD) have high efficiency, flexible control, and high cost performance as their core advantages, taking into account both conventional operations and special scene requirements (such as explosion-proof models). Its technical upgrades are reflected in the optimization of human-machine interaction, enhanced safety, and convenient maintenance, but it needs to cope with the industry's electrification transformation trend. Users can choose the standard version or customized configuration (such as explosion-proof, accessories adaptation) according to actual working conditions to maximize operating efficiency.
