Original Small Size Second Hand Excavating Equipment Cheap Price Excellent Quality Used Hitachi Zx60 Excavator With Blade

Comprehensive description of Hitachi ZX60 crawler excavator:

1. Basic parameters and core configuration

Machine weight: 6 tons, working weight 5,850 kg, a small excavator, suitable for municipal construction, agricultural and forestry operations, pipeline construction and other scenarios.

Bucket capacity: standard 0.22 m³ backhoe bucket, some data marked as 0.28 m³, suitable for light to medium intensity excavation operations.

Power system:

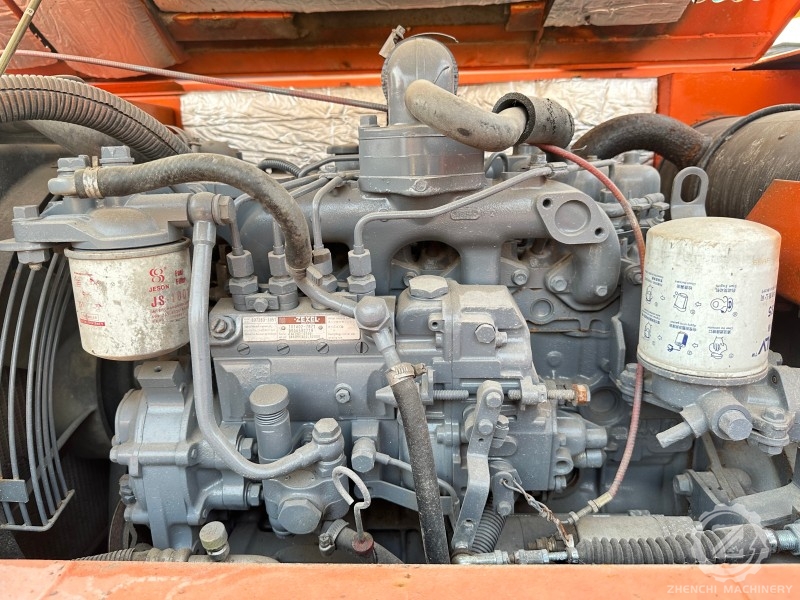

Engine: Equipped with ISUZU CC-4JG1 direct injection four-cylinder turbocharged diesel engine, rated power 40.5 kW (about 54.3 horsepower), speed 2,100 rpm, displacement 3.059 L, in line with Tier 3 emission standards.

Fuel efficiency: The fuel tank capacity is 120 L, which supports a long working time, and users evaluate low fuel consumption.

2. Performance characteristics

Operation capacity:

Digging range: maximum digging depth 3,850 mm, maximum digging height 5,800 mm, maximum unloading height 4,080 mm, covering the needs of small and medium-sized projects.

Digging force: bucket digging force 41.4 kN, digging force 28.4 kN, providing stable and efficient digging performance.

Travel and rotation: travel speed is divided into two gears (2.5/4.5 km/h), rotation speed 9.3 rpm, climbing ability up to 70% (35°), adapt to complex terrain.

Hydraulic system:

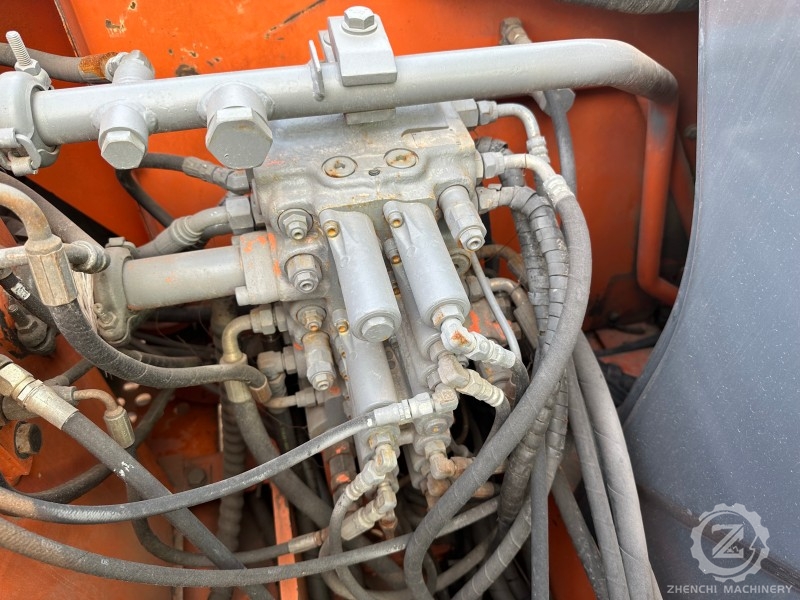

Main pump configuration: adopts dual variable piston pump + dual gear pump combination, main overflow pressure 24.5 MPa, precise power distribution, low energy consumption.

Motor type: travel motor is variable swash plate piston motor, and rotation motor is axial piston motor, taking into account flexibility and stability.

3. Design and durability optimization

Structural reinforcement:

Lower walking body: track shoe width 400 mm, track gauge 1,600 mm, ground pressure 33 kPa, equipped with a reinforced X-beam structure to improve impact resistance.

Front-end device: boom length 3,490 mm, dipper length 1,620 mm (reinforced type), key connection parts are made of wear-resistant materials to extend service life.

Cab design:

Wide-view cab (full height 2,470 mm), standard suspension seat and dustproof design, some models can be equipped with air conditioning system, and the operation panel is reasonably laid out to improve comfort.

4. Maintenance and applicable scenarios

Maintenance convenience:

Maintenance parts are centrally arranged, fuel filters, oil filters, etc. are easy to replace, hydraulic oil tank capacity is 61 L (full tank 95 L), engine oil replacement volume is 12 L, reducing maintenance costs.

Radiator and dust screen support quick cleaning to reduce downtime.

Applicable scenarios:

Universal design, suitable for small and medium-sized projects such as pipeline excavation, slope repair, municipal construction and farmland transformation; no standard bulldozer, need to be selected according to needs.

5. Market positioning and technical features

Market positioning: As Hitachi's 6-ton representative model, ZX60 is known for its high cost performance and reliability, especially in the domestic market (produced in Hefei, Anhui), it is widely favored by small and medium-sized engineering contractors.

Technical features: Compared with high-end models (such as ZX200 series), it does not carry HIOSⅢ hydraulic technology, but optimizes the hydraulic control logic and structural strength to meet basic operation needs
