Used Sany HBT60 HBT80 HBT90 Stationary Trailer Pump for Sale

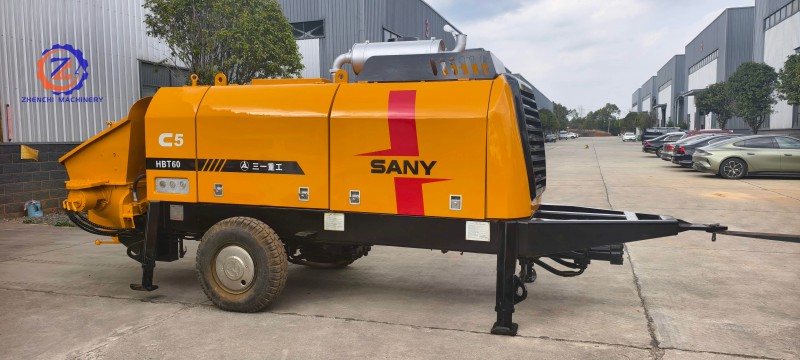

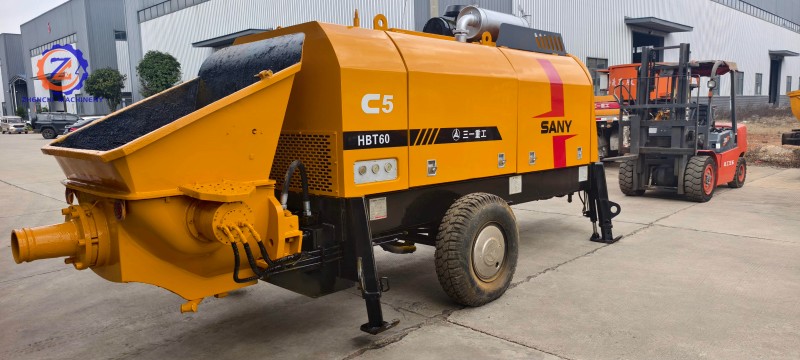

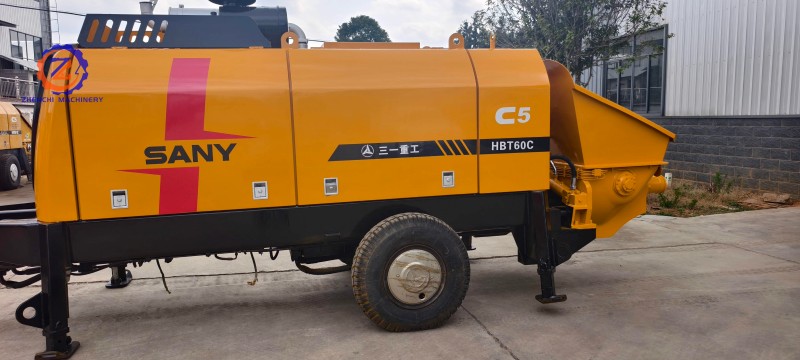

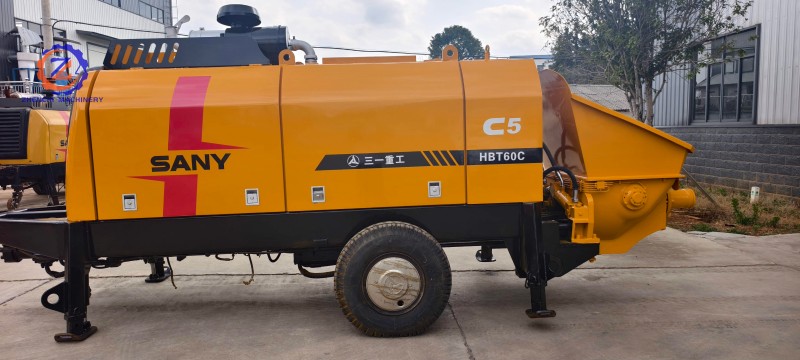

Sany HBT60C trailer pump is a multifunctional concrete conveying equipment produced by Sany Heavy Industry, which is widely used in construction projects, bridges and tunnels. This series includes multiple sub-models, covering two power types: electric and diesel. The specific parameters and configurations vary depending on the model. The following is a comprehensive description:

I. Basic parameters and performance

Power type

Electric trailer pump: main motor power 132kW, 90kW, some models are equipped with 132KW motor, maximum displacement 60m³/h, delivery pressure 10MPa or 13MPa.

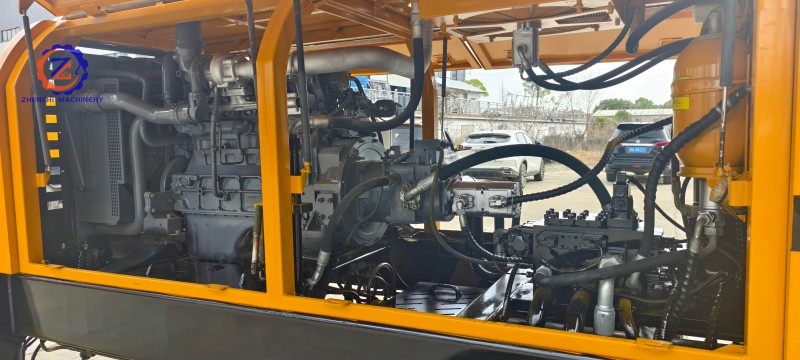

Diesel trailer pump: For example, HBT60C-1413DⅢ model, diesel engine power 115kW, maximum displacement 65m³/h, pressure 13MPa; higher configuration HBT60C-1816DⅢC diesel engine model displacement up to 75m³/h, pressure 16MPa.

Transportation capacity

The maximum horizontal conveying distance is about 800 meters, vertical 180 meters; some diesel models can reach a vertical pumping height of 492 meters.

Adaptable aggregate particle size range: Φ150mm or higher configuration supports three-grade concrete, maximum aggregate particle size 80-100mm.

Structural design

S-tube valve system: good sealing, durable and easy replacement of vulnerable parts.

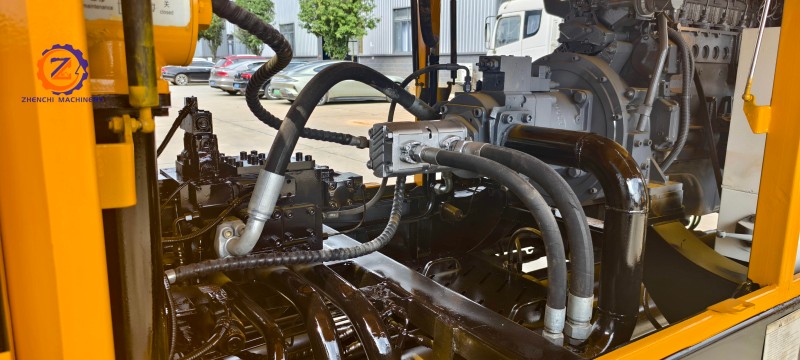

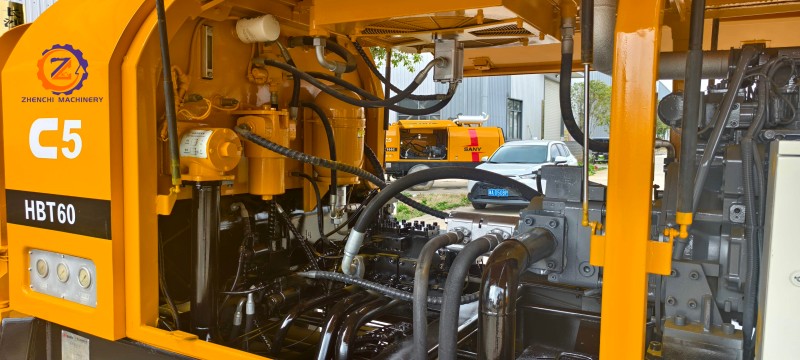

Hydraulic system: adopts closed loop or open full hydraulic reversing system, low oil temperature and small reversing impact.

Wear-resistant technology: high-strength steel plate and rubber tube enhance wear resistance, and automatic return technology of concrete piston simplifies maintenance.

2. Core technical features

Intelligent control system

Equipped with PLC control system and SYMC/SYLD dedicated intelligent system, supporting remote monitoring, fault self-diagnosis and dynamic parameter display.

Electro-hydraulic proportional displacement stepless adjustment to meet various working conditions.

Energy saving and environmental protection

Global power adaptive technology can save more than 20% energy.

Diesel engine models use low-emission engines that meet European and American standards.

Convenient operation and maintenance

High and low pressure automatic switching technology to quickly solve pipe blockage problems.

The patented waterproof seal of the hydraulic main cylinder prevents the hydraulic oil from emulsifying.

III. Application and Advantages

Applicable scenarios: large-scale infrastructure, super high-rise buildings (such as Shanghai Tower), bridges and tunnels, etc.

Advantages: high reliability (international brand hydraulic/electrical components), flexible mobility (hydraulic walking system), high pumping efficiency (dual-circ

Structural design uit hydraulic system synchronous operation).

Industry recognition: Won the second prize of the National Science and Technology Progress Award, passed the CE certification, and set many world records for concrete pumping.
