Original Japan Used Pc120-6 Pc120 komatsu Japan Made Crawler Digging Machine 12ton Pc120-8 Pc120 komatsu Excavator for Sale

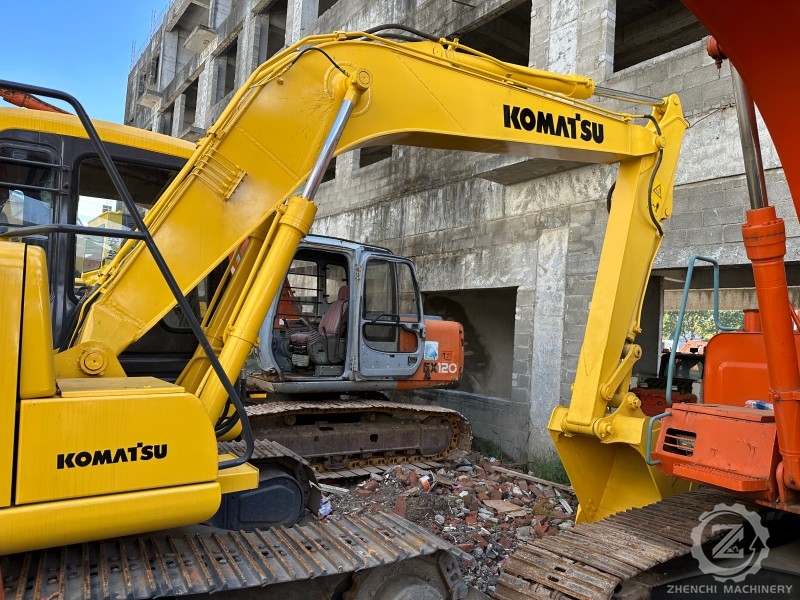

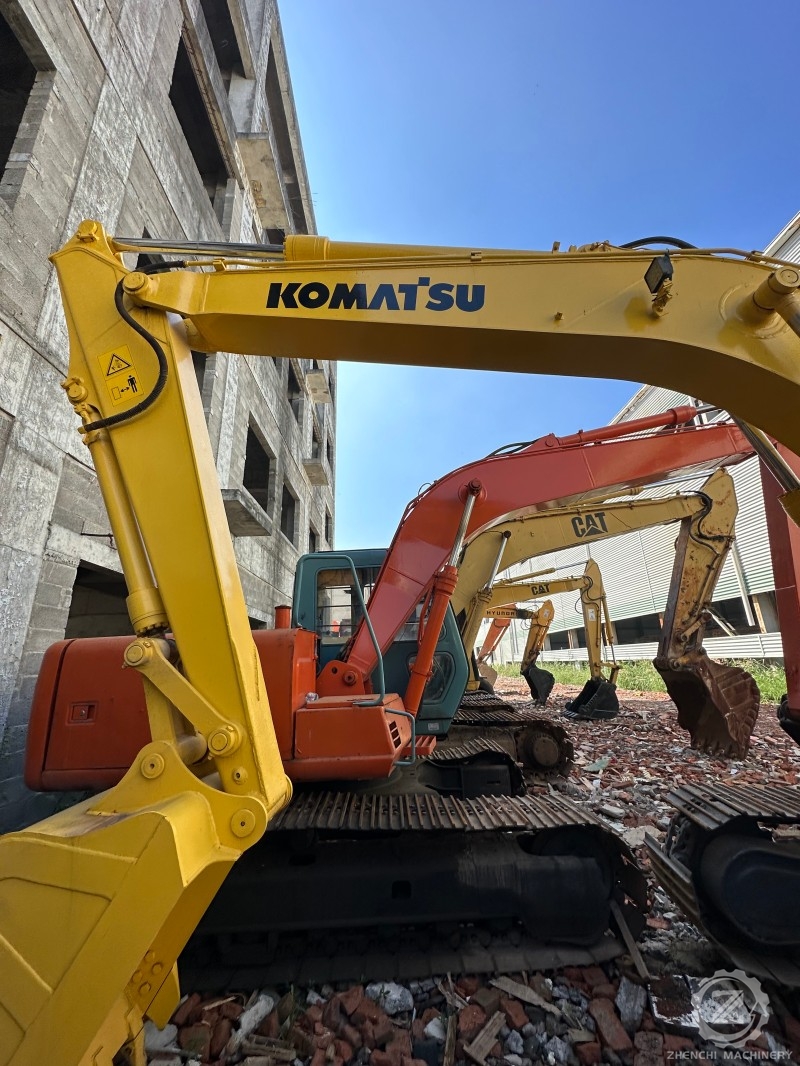

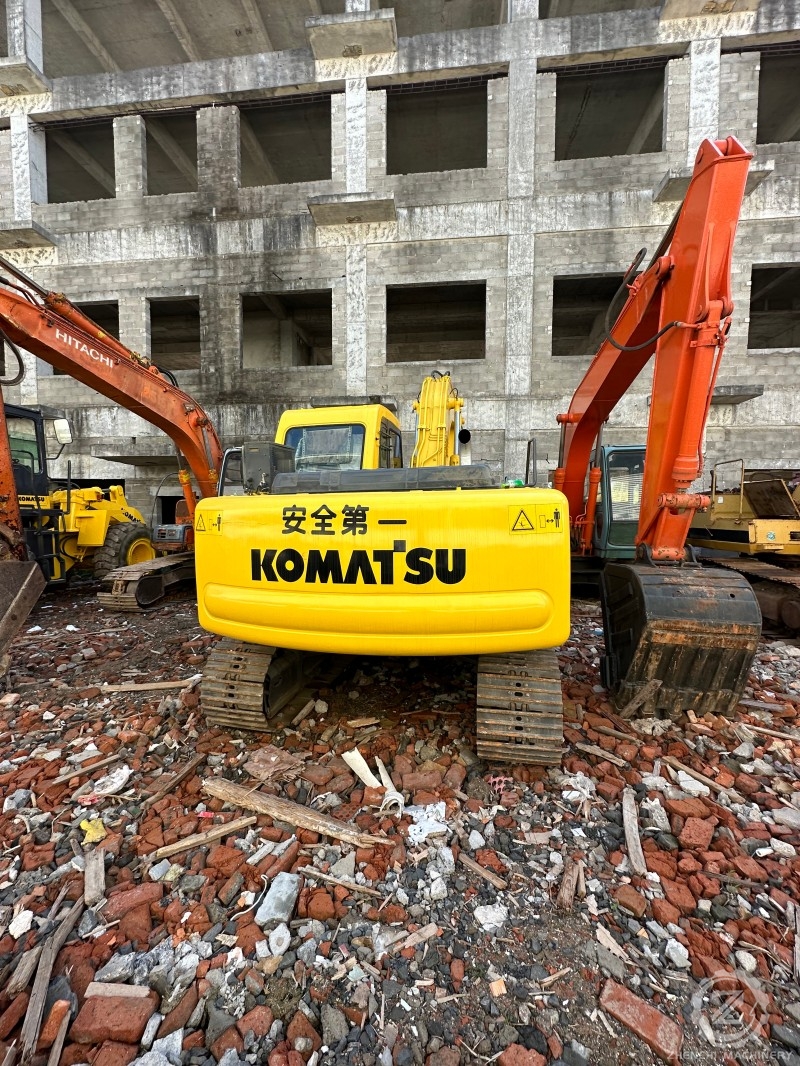

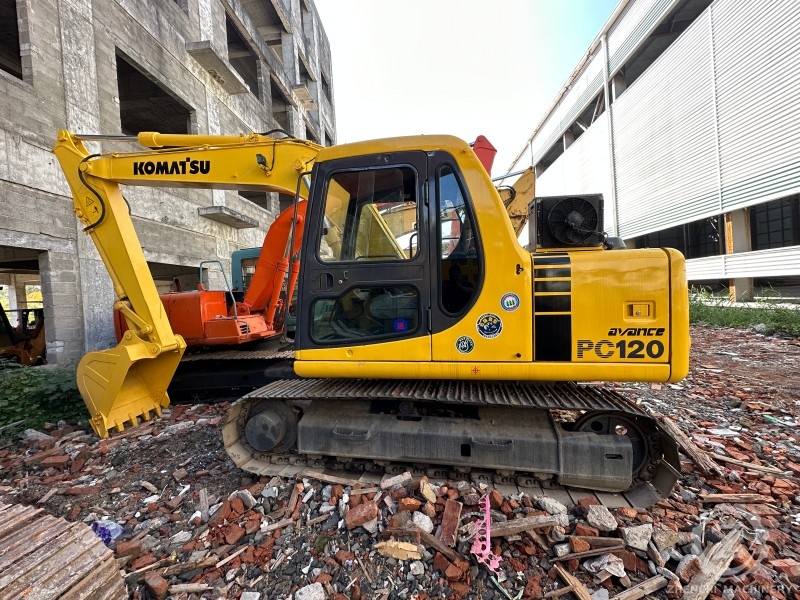

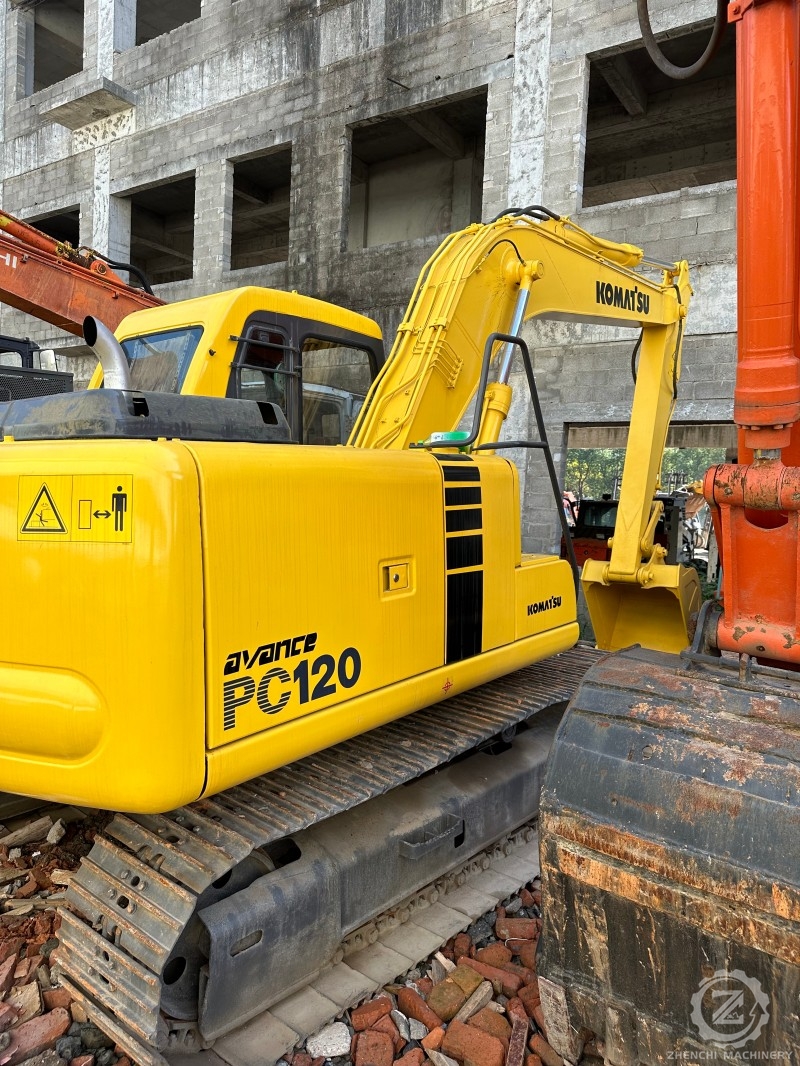

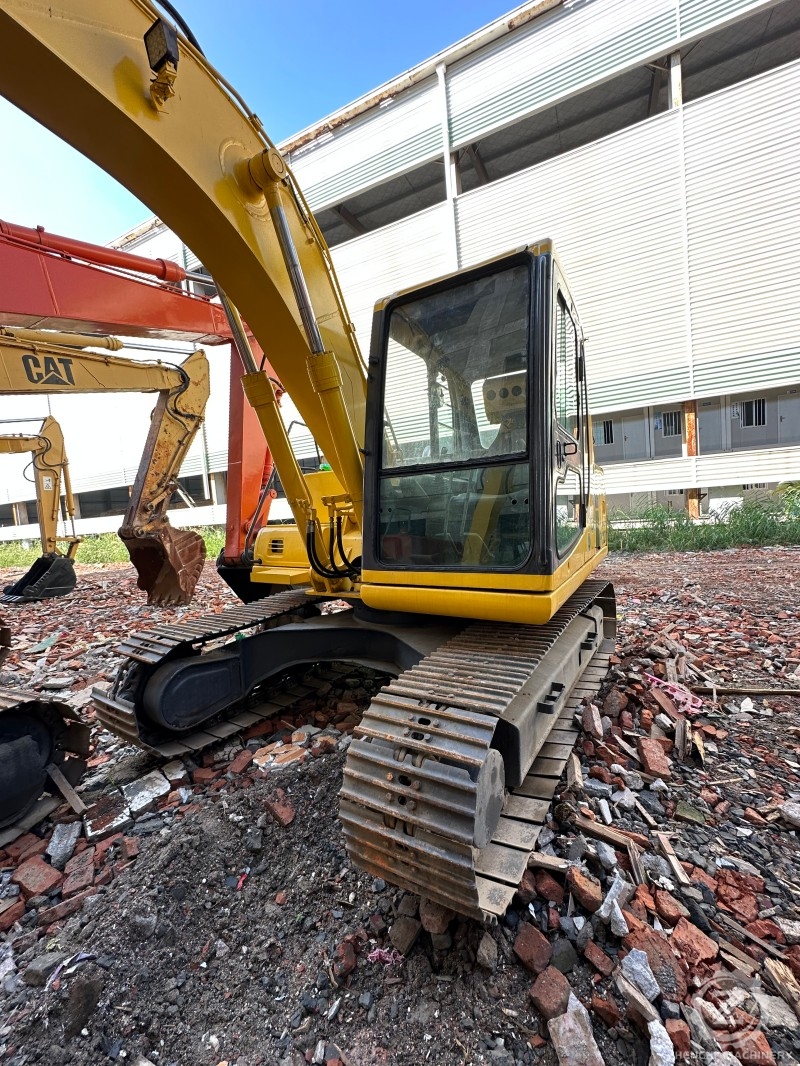

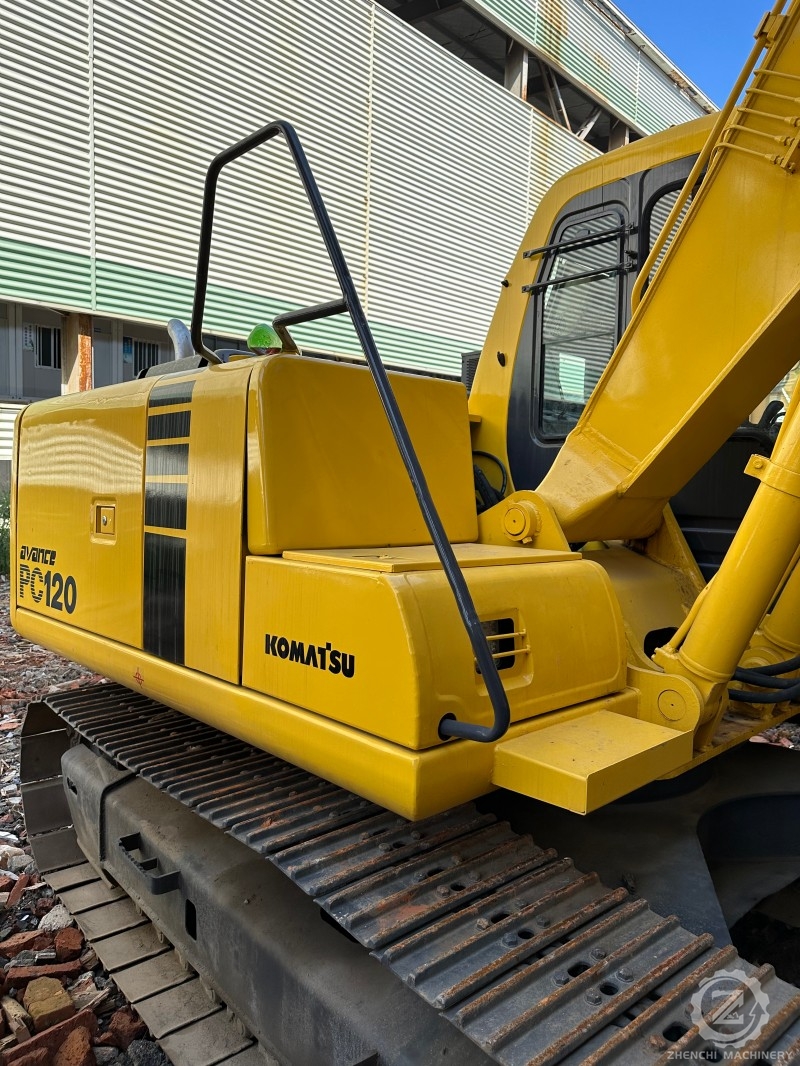

Komatsu PC120-6 excavator is a 12-ton medium-sized excavator, which is widely used in earthwork, mining operations and infrastructure construction with its high efficiency and reliability. The following is a comprehensive description:

1. Basic parameters

Tonnage: 12 tons

Operating weight of the whole machine: 12030 kg

Bucket capacity: 0.5 m³ (standard backhoe configuration)

Arm length: 2100 mm

Power type: traditional diesel power, engine model is Komatsu SAA4D95LE-3, direct injection, turbocharged, intercooled, displacement 3.26L, rated power 64 kW/2200 rpm.

Fuel tank capacity: 247 L, hydraulic oil tank 90 L, engine oil replacement volume 11 L.

2. Hydraulic system and performance

Hydraulic system pressure:

Main pump flow: 226 L/min

Working hydraulic circuit: 325 kg/cm²

Travel circuit: 355 kg/cm²

Slewing circuit: 295 kg/cm²

Control circuit: 30 kg/cm².

Operating range:

Maximum digging depth: 5520 mm

Maximum digging radius: 8290 mm

Maximum digging height: 8610 mm

Maximum unloading height: 6170 mm.

Travel and slewing performance:

Travel speed: 2.7–5.5 km/h

Slewing speed: 11 rpm

Gradability: 70% (about 35°).

3. Core advantages

Power and efficiency:

Equipped with a high-power engine and hydraulic transmission system, the bucket digging force reaches 8800 kN and the digging force of the bucket arm is 6300 kN, which can adapt to complex working conditions.

Economic mode (E0-E3 gear) and fast mode (P gear) are optional to optimize fuel consumption and operating efficiency.

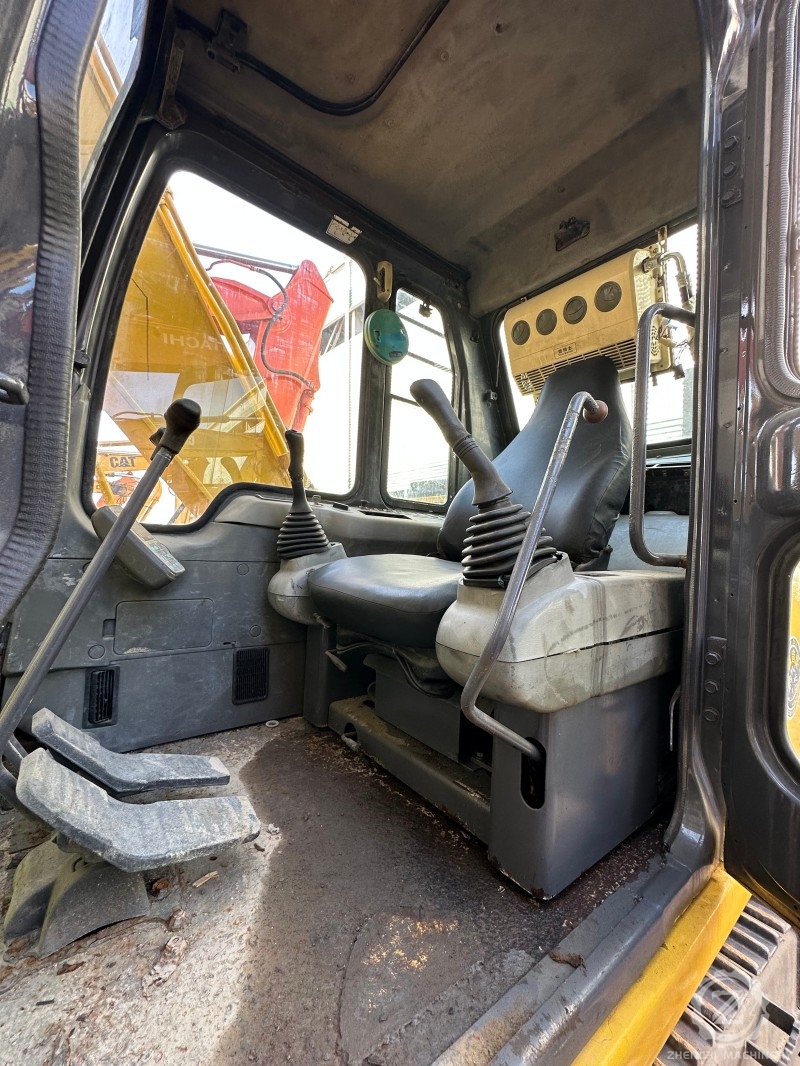

Control and comfort:

The electronic control system is adopted, and the operation is precise and flexible; the 7-inch color LCD monitor supports multi-language display to enhance the human-machine interaction experience.

The cab is equipped with an air-conditioning system and an ergonomic seat to reduce operating fatigue.

Durability and maintenance:

Key components such as the cooling system adopt a parallel design to avoid overheating; the modular structure simplifies the maintenance process and reduces maintenance costs.

The fuel pre-filter element with oil-water separation function is standard to extend the engine life.

Multi-functional adaptation:

Optional accessories such as a breaker hammer can be used to expand the operation scene.
