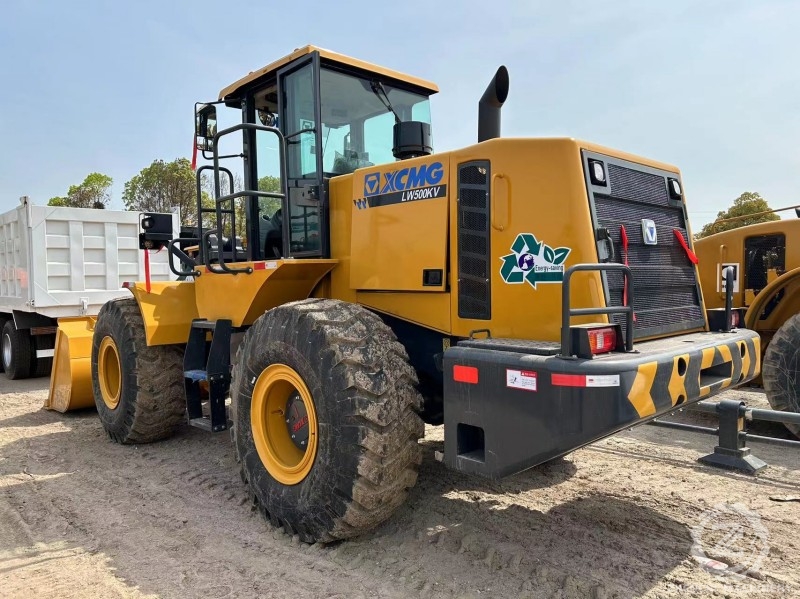

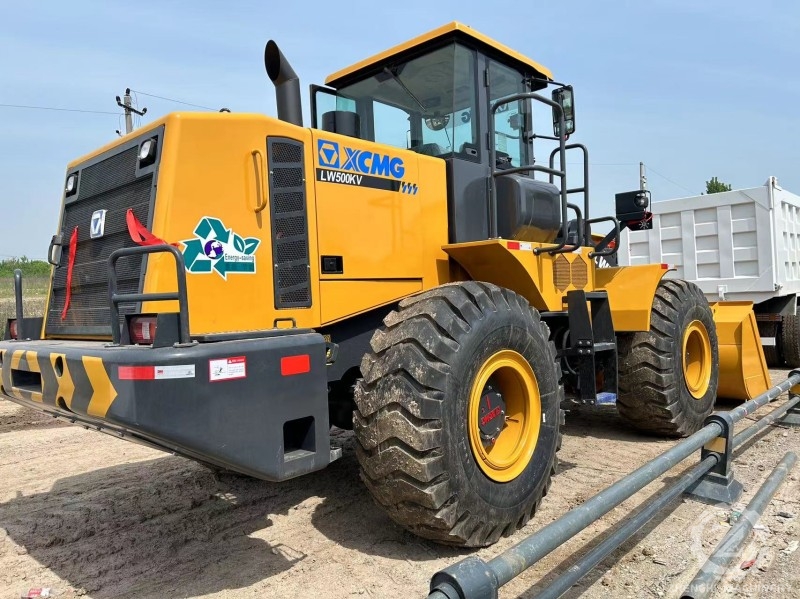

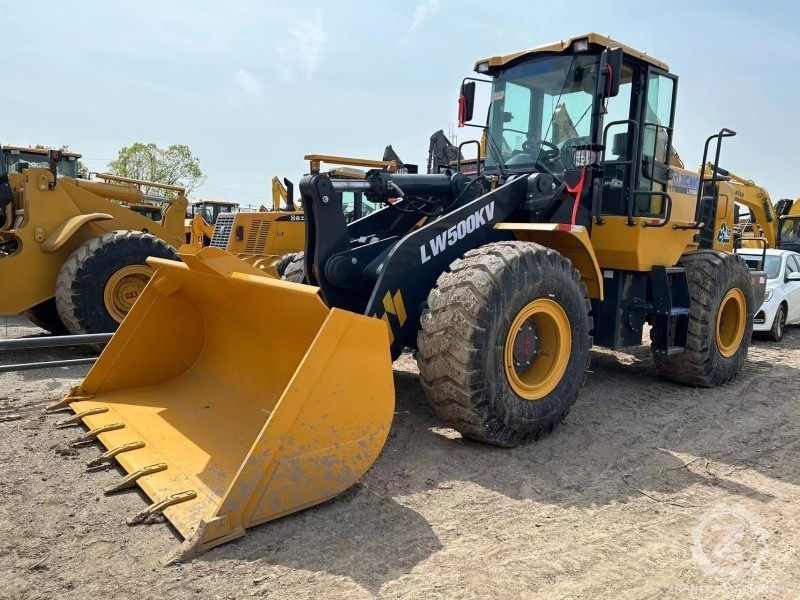

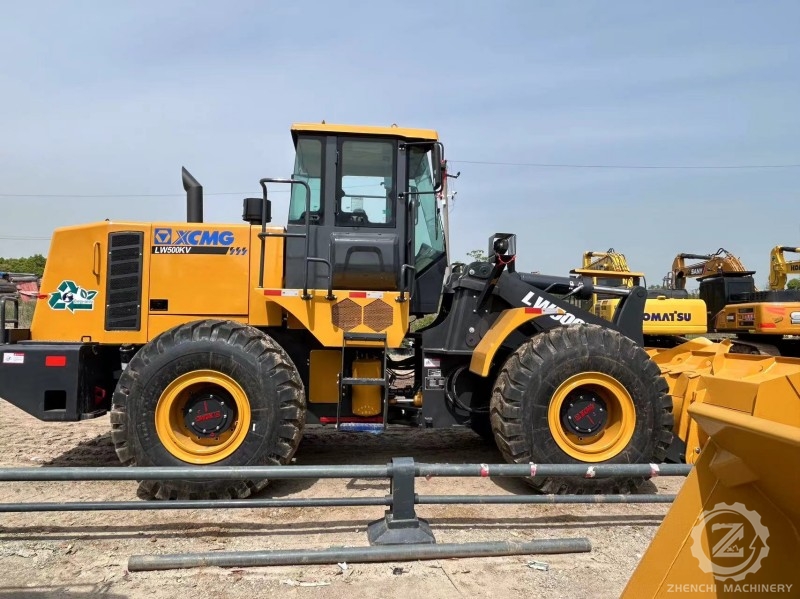

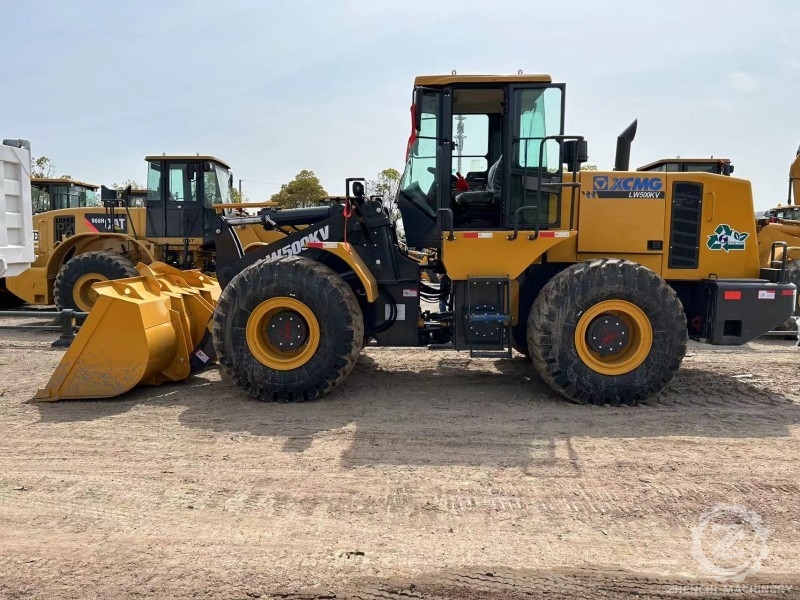

XCMG LW500KV Used Wheel Loader Chinese Brand Used Wheel Loader Construction Machinery for Sale

Comprehensive description of XCMG LW500KV loader:

1. Basic parameters

Machine configuration

Tonnage: 5-ton medium-sized wheel loader, the whole machine operating weight is about 17,000-19,500 kg (different configurations vary).

Rated load capacity: 5,000 kg for standard type, 4,500 kg for side-unloading type.

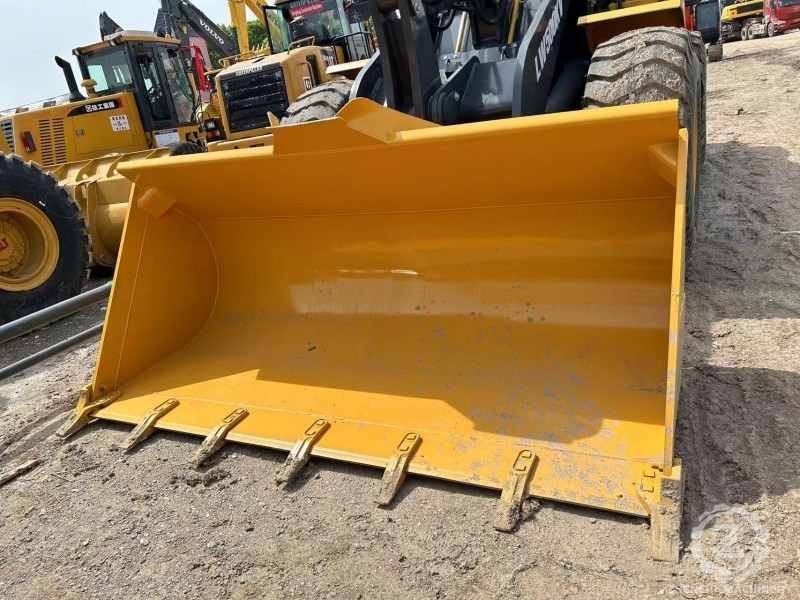

Bucket capacity: 2.5–4.5 m³ (standard type), side-unloading bucket capacity is 2.5 m³.

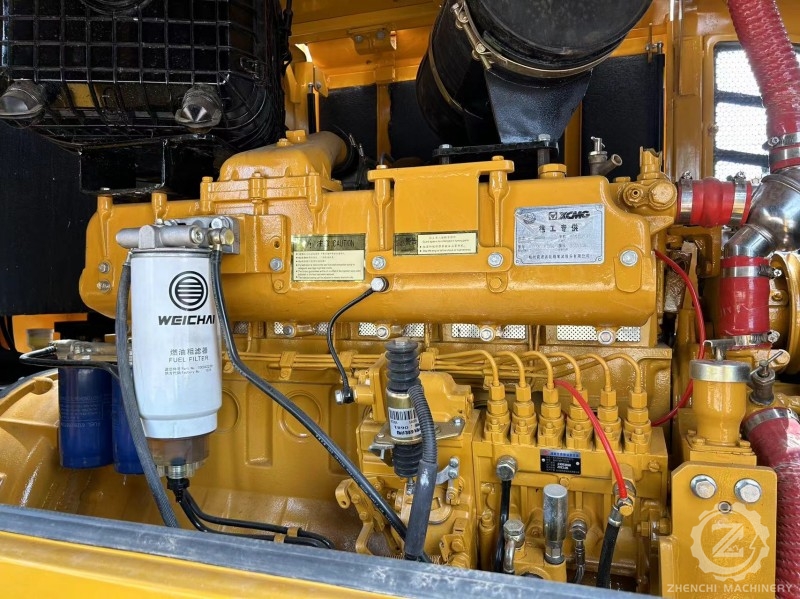

Power system: Equipped with Weichai WP10G220E343 engine, rated power 162 kW, speed 2,000 rpm, in line with the National III emission standards, equipped with a three-stage desert air filter, suitable for dusty working conditions.

Travel performance: maximum forward speed 41 km/h, maximum reverse speed 16.5 km/h, climbing ability up to 30°.

Operation performance

Digging force: 175 kN for standard type, 170 kN for side dump type, 160 kN for traction.

Unloading height: 3,100-3,780 mm for standard type, 4,080 mm for side dump type (suitable for tunnel operation).

Operation efficiency: bucket lifting time is 6 seconds, three-item sum time is 10.5 seconds, suitable for high-intensity continuous operation.

2. Core configuration and design highlights

Hydraulic system

Automatic power distribution (APD): variable piston pump is used to dynamically adjust the pressure and flow of the hydraulic system according to the working conditions, saving 15% energy.

Dual pump separation and confluence technology: reduce hydraulic no-load loss and improve engine power utilization.

Structural design

Frame and articulation: heavy-duty design is adopted for the front and rear frames, and double-row tapered roller bearings are configured at the main articulation to enhance load-bearing capacity and driving stability.

Wheelbase and ground clearance: wheelbase is 3,300 mm, minimum ground clearance is 440 mm, suitable for complex terrain.

Driving and Control

Cab: Fully enclosed international version design, equipped with shock-absorbing seats, digital instruments and air conditioning system, high operating comfort.

Intelligent control: hydraulic flexible steering limit system, reduce impact, improve control accuracy.

Energy saving and environmental protection

The engine adopts electronically controlled high-pressure common rail technology, low fuel consumption and emissions meet the National III standard.

III. Performance advantages

Efficient and applicable to multiple scenarios

The standard type is suitable for general scenarios such as ports, mines, earthworks, etc. The side unloading type is specially designed for tunnel construction, with better unloading height and flexibility.

A variety of tools (snow plows, clamps, high unloading buckets, etc.) can be selected to expand the operating range.

Durability and convenient maintenance

Key structural parts are made of high-strength steel, and wear-resistant plates are used for easily worn parts of the bucket to extend the service life.

Maintenance points are centrally arranged, and the engine hood adopts a large side door design for easy maintenance.

IV. Model Differences

Standard LW500KV: Rated load 5,000 kg, machine weight 17,000 kg, suitable for general operations.

Side-discharge LW500KV: Unloading height 4,080 mm, machine weight 19,500 kg, optimized for narrow tunnel environments.
